Product range

Commercial HDPE grease traps

Confirmed Port Capital capacities and dimensions for commercial kitchens, hospitality, shopping centres, hospitals and industrial trade waste applications.

HDPEribbed construction1000L-5000Lsix standard modelsProject supportsizing and delivery advice

View Updated Supplier Schedule View Model Drawings

Standard models

Port Capital PCGT grease trap range

Updated supplier model data for preliminary selection. Confirm lid loading, site conditions and authority requirements with Polyrib before procurement.

Port Capital PCGT1000

Supplier schedule reference: POR1000.

Dry weight: 58 kg approx.
Capacity: 1,000L
Body length × width × height: 1,800 × 900 × 980mm
Inlet H1 / outlet H2: 800 / 720mm
Applications: Cafes, kiosks, smaller tenancies and compact commercial kitchens.

View Drawing Request Quote

Port Capital PCGT1500

Supplier schedule reference: POR1500.

Dry weight: 75 kg approx.
Capacity: 1,500L
Body length × width × height: 2,060 × 1,000 × 1,150mm
Inlet H1 / outlet H2: 980 / 900mm
Applications: Restaurants, bakeries, hospitality venues and small hotels.

View Drawing Request Quote

Port Capital PCGT2000

Supplier schedule reference: POR2000.

Dry weight: 95 kg approx.
Capacity: 2,000L
Body length × width × height: 2,478 × 1,200 × 1,300mm
Inlet H1 / outlet H2: 1,100 / 1,020mm
Applications: Large restaurants, pubs, clubs, hotels and commercial kitchens.

View Drawing Request Quote

Port Capital PCGT3000

Supplier schedule reference: POR3000.

Dry weight: 143 kg approx.
Capacity: 3,000L
Body length × width × height: 2,565 × 1,300 × 1,400mm
Inlet H1 / outlet H2: 1,180 / 1,090mm
Applications: Shopping centres, hospitals, food courts and high-volume kitchens.

View Drawing Request Quote

Port Capital PCGT4000

Supplier schedule reference: POR4000.

Dry weight: 193 kg approx.
Capacity: 4,000L
Body length × width × height: 2,280 × 1,620 × 1,755mm
Inlet H1 / outlet H2: 1,500 / 1,425mm
Applications: Large hospitality venues, shopping centres, hospitals and major commercial kitchens.

View Drawing Request Quote

PCGT5000 adapted drawing with 2660 mm length

Port Capital PCGT5000

Supplier schedule reference: POR5000.

Dry weight: 221 kg approx.
Capacity: 5,000L
Body length × width × height: 2,660 × 1,620 × 1,755mm
Inlet H1 / outlet H2: 1,500 / 1,425mm
Applications: Major commercial kitchens, shopping centres and industrial trade waste applications.

View Drawing Request Quote

October 2026 technical update

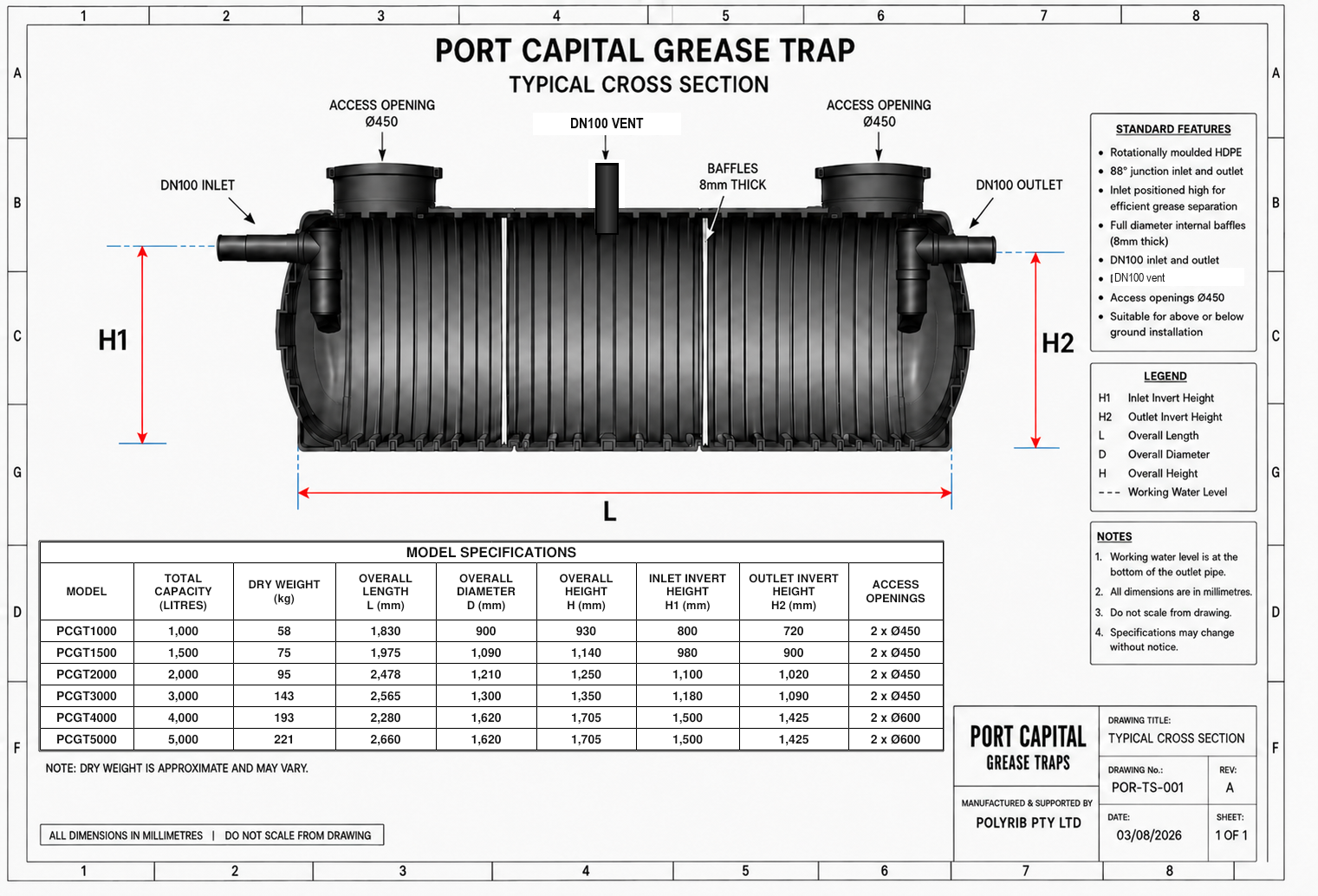

Supplier drawings and dimension schedule

Updated 18 October 2026 from the supplier POR dimension schedule. PCGT references are retained from the existing Port Capital range; supplier references are POR1000–POR5000. Dimensions are in mm. Body length excludes the separately shown end-connection envelope. Confirm H1/H2 measurement datum, opening sizes and site requirements with Polyrib before final set-out.

Download Updated Drawings & Schedule (PDF)View Supplier Dimension Table

PCGT1000 supplier POR1000 dimensioned drawing — PCGT1000 / supplier POR1000 — drawing matched to the supplier dimension schedule. Open image for full detail; do not scale.

PCGT1500 supplier POR1500 dimensioned drawing — PCGT1500 / supplier POR1500 — drawing matched to the supplier dimension schedule. Open image for full detail; do not scale.

PCGT2000 supplier POR2000 dimensioned drawing — PCGT2000 / supplier POR2000 — drawing matched to the supplier dimension schedule. Open image for full detail; do not scale.

PCGT3000 supplier POR3000 dimensioned drawing — PCGT3000 / POR3000 - supplied model drawing. Body length 2565 mm; overall connection length 2655 mm; width 1300 mm; overall height 1400 mm; secondary height 1350 mm; H1 1180 mm; H2 1090 mm. Do not scale.

PCGT4000 supplier POR4000 dimensioned drawing — PCGT4000 / supplier POR4000 — drawing matched to the supplier dimension schedule. Open image for full detail; do not scale.

PCGT5000 supplier POR5000 drawing adapted from POR4000 with 2660 mm length — PCGT5000 / POR5000 — adapted from the 4000L drawing at Polyrib’s direction, with length changed to 2660 mm. Other views and dimensions retained; do not scale.

Freight efficient

Lightweight HDPE construction can reduce freight and handling effort compared with traditional concrete systems.

Installation focused

Ribbed profiles, manageable weights and clear installation documentation help site teams plan efficiently.

Technical support

Polyrib can assist with model selection, application review, certification status and documentation requests.

Request a quote

Send the product details with your site requirements

For accurate pricing, include the capacity, site suburb, lid loading, inlet/outlet details and any delivery constraints.
